The maintenance of your sprinkler system takes effort to maintain operation during winter months. Water remaining inside the pipes during freezing temperatures leads to expansion that results in costly damage, which causes pipe cracking and reimbursement expenses.
Every year numerous householders deal with this problem yet they lack knowledge about a straightforward solution. How to connect air compressor to sprinkler system?The following guide will cover all steps, including what tools will be needed, what safety precautions should be taken, and what the best practices are to ensure a smooth and easy to establish connection.
Why Use an Air Compressor for Sprinkler Systems?
- Preventing Pipe Damage: Water that remains in the sprinkler pipes freezes in winter expands and can lead to cracks or even complete breakages. It removes residual water, which protects your irrigation infrastructure.
- Improving Sprinkler Performance: Your sprinkler system will flow water freely when you turn it on in spring, thanks to a clean, dry system that prevents clogs of sediment and debris accumulation.
- Extending System Lifespan: By properly maintaining with an air compressor, this will extend the life of your sprinkler system and save you expensive repairs and replacements.

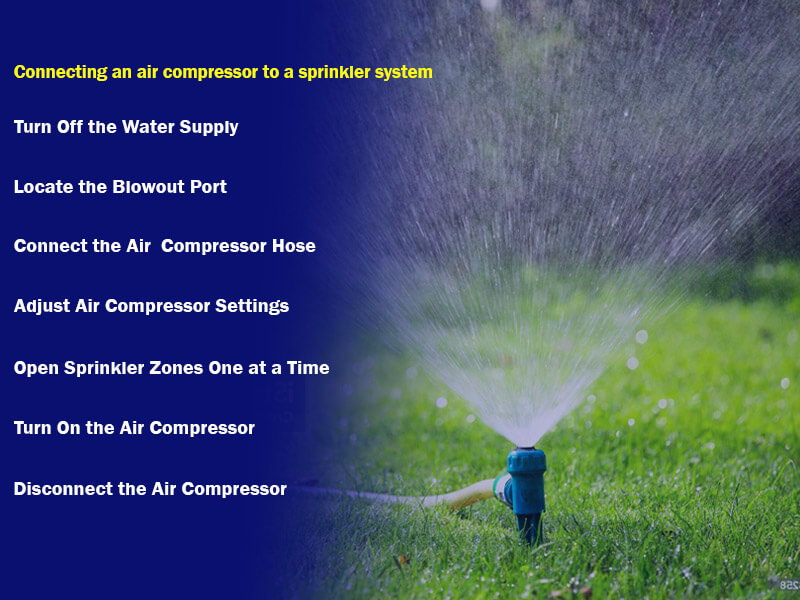

Step-by-Step Guide to Connecting an Air Compressor to a Sprinkler System
- Step 1: Turn Off the Water Supply
First thing you should do is locate the main shutoff valve and turn it off completely. This will stop any excess water from entering the sprinkler system as you go. If you have a backflow preventer on your system, verify that the inlet and outlet valves are both closed.
Check for leaks or residual pressure in the system Turning off the water supply means that when you put air in, you won’t be pushing water deeper into the pipes and reducing the potential for damage.
- Step 2: Locate the Blowout Port
Locate the specified blowout port which is typically located near your main shutoff valve or backflow preventer. Some systems are divided into small aspects like zones, with multiple ports. Some systems don’t have a dedicated port for this; one alternative is to connect the air compressor with an adapter at the water source.
Examine the blowout port for debris or damage before beginning. A clear method for distributing the air through the sprinkler lines, which is also well-maintained, ensures accuracy in the overall system.
- Step 3: Connect the Air Compressor Hose
Wrapping the threads of the blowout adapter with Teflon tape to keep air from leaking. Screw the quick-connect adapter to the air compressor’s hose Next, use an adjustable wrench to connect the air hose to the sprinkler system’s blowout port.
Make sure the connection is tight and sealed to prevent air pressure loss. Check that all connections are secure, loose fittings can prevent proper air distribution and the complete removal of water.
- Step 4: Adjust Air Compressor Settings
Adjust the setting on air compressor to a safe level according to pipe material. In general, PVC pipes must not exceed 50 PSI, polyethylene pipes can be kept under 40 PSI, and drip irrigation networks can be maintained between the flow of 20-30 PSI.
Also, if you keep on over-pressurizing, it can really damage the sprinkler system. Your rainmaker manufacturer’s guidelines should be your always-referenced source to ensure proper pressure settings for your particular system.
- Step 5: Open Sprinkler Zones One at a Time
Open one sprinkler zone prior to turning on the air compressor to avoid excessive pressure buildup. Most systems have a manual valve or controller to select individual zones. The water flows into the system starting from the farthest point to the air compressor so filling the lines happens correctly. You should clear just one zone at a time to avoid overloading the system, and to make sure all water gets evacuated.
- Step 6: Turn On the Air Compressor
Start up the air compressor very gradually and let the air into the system. As water starts spraying out, watch the heads of the sprinkler. At first, a combination of water and mist will come out of the heads. Repeat until clear, bubbly water emerges, then all the water has been expelled. Watch for signs of over-pressurization or damage to sensitive parts.
- Step 7: Repeat for All Zones
After the first zone is clean, shut off the compressor and advance to the following zone. Open the valve for the next part and repeat this process, letting air push out whatever water is left. Repeat this for every zone in your system until all water has been expelled from each pipe and sprinkler head. Some skipping of zones can leave water trapped, which may freeze and break your pipes.
- Step 8: Disconnect the Air Compressor
When all zones have been activated and completed, turn off the air compressor. Slowly remove the air hose from the blowout port. Take off any adapters or fittings that were used in the process.
Properly storing your equipment will help prevent damage and also ensuring that it is ready for future use. All connections should be checked before leaving the system idle for the winter.
- Step 9: Inspect the System
Check your sprinkler system final. Keep an eye out for any signs of damage, including cracked pipes, loose fittings or broken sprinkler heads. Make any necessary repairs now before the spring brings more complications. Making sure your system is healthy now will save time and money when the time comes to reactivate it in hotter weather.
- Step 10: Store Equipment Properly
Keep your air compressor, hoses and fittings in a dry, climate-controlled environment to reduce wear and tear. Don’t leave moisture in the air compressor, which can cause rust in the compressor. Maintaining your tools will make the process smooth and efficient when it’s time to blow out your sprinkler system again next year.
Safety Tips When Using an Air Compressor
- Wear safety goggles and gloves to protect yourself from flying debris and of air escaping suddenly.
- Never exceeding the PSI for your sprinkler pipes as it can lead to damage.
- Avoid the stand over sprinkler heads while blowing out the system, sudden burst of air can injure.
- Instead of blowing a continuous stream, use short bursts of air to avoid pressure build up.
- Make sure children and pets are kept away from the area while performing the blowout process.
Conclusion
Learn how to connect air compressor to sprinkler system with the following simple tips. When properly executed, following these step-by-step instructions, the tools needed, and safety precautions will allow you to easily blow out your sprinkler system and prevent winter damage. Lawn sprinklers last longer when they are well-maintained, and regular maintenance will save you from costly repairs.
FAQ’s
Can you use a small air compressor to blow out your sprinkler system?
Yes, but it could take longer and require a few refills if it lacks a large enough tank sufficient PSI. Ideally, you will want a compressor with a minimum 5-gallon tank.
How much PSI should I use for blowing out my sprinkler system?
Generally speaking 40-50 PSI for PVC pipes, and 50-80 PSI for metal pipes. To avoid damaging your system, always check its manual for details.
How often should I do a sprinkler system blowout?
Once a year, before winter, to prevent freezing and rupture of pipes. Routine maintenance keeps your irrigation system functioning well.
Can I blow out my sprinkler system without a air compressor?
Although there are other methods, an air compressor is the most efficient and reliable way to blow all the water out of the system and properly winterize it.
What if I don’t blowout my sprinkler system?
Standing water has the potential to freeze, expand, and causes pipes burst, resulting in expensive repairs and disrupted system functionality. Prevention is better than repair.
